DFPD

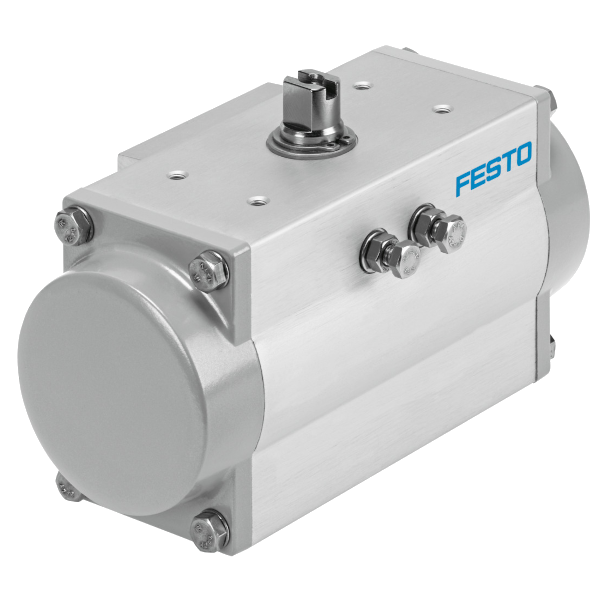

Quarter Turn Actuator

The DFPD series features a rack and pinion combination with a constant torque characteristic across the entire swivel range. The quarter turn actuators DFPD are perfect for automating your butterfly valves, ball valves and dampers.

Description

Type:
General purpose and washdown

Design:
Rack and pinion

Function:
Double acting/single acting

Connection:
NAMUR
NPT thread
G thread

Torque at 87 psi [Ln:In]
10-480 Nm (double acting)
14-330 Nm (single acting)

Seal
NBR, FKM, FVMQ

Operating pressure range:
2-8 bar

Operating temperatures:
-20°C -80°C (NBR)
0°C – 150°C (FKM)
-50°C – 60°C (FKMV)
