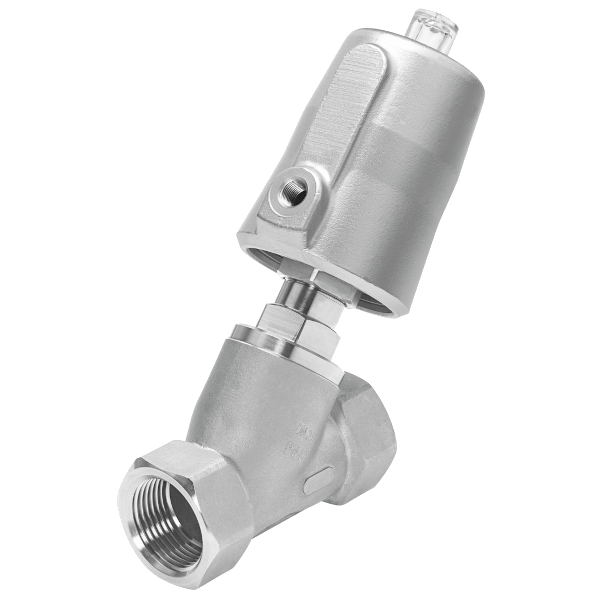

The angle seat valves VZXA are externally actuated valves which are controlled by a direct supply of compressed air and are used to shut off gaseous or liquid media in pipe systems. In the process, a spindle with a soft-sealing valve disc is raised and lowered using a pneumatic actuator. In all the versions mentioned below, the valve seat is slanted at an angle of approx. 40° in relation to the medium flow. The flow direction is determined by the design of the valve (angle seat fitting and actuator).
Category:
2/2-way Media valves (pneumatic)
Type:
½” – 2”
Connection:
NPT thread
G thread
Housing material:
Brass
Seal
NBR
Maximum operating pressure:*
16 bar
Operating temperature:
-20°C – 80°C
*Maximum operating pressure is dependent on valve size
