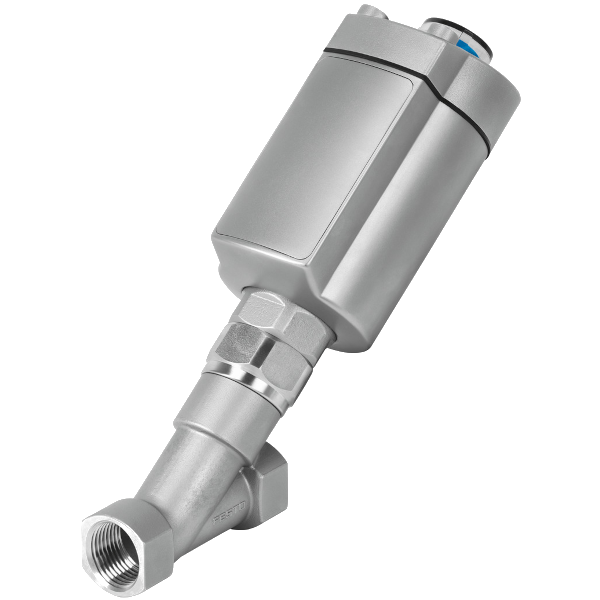

VZXA

Angle seat valve

The angle seat valves VZXA are externally actuated valves which are controlled by a direct supply of compressed air and are used to shut off gaseous or liquid media in pipe systems. In the process, a spindle with a soft-sealing valve disc is raised and lowered using a pneumatic actuator. In all the versions mentioned below, the valve seat is slanted at an angle of approx. 40° in relation to the medium flow. The flow direction is determined by the design of the valve (angle seat fitting and actuator).



★ Festo Core Range

Description

Category:
2/2-way Media valves

Type:
½” – 2½”

Connection:
NPT thread
G thread
Clamp (ASME BPE)
Clamp (DIN 32676)

Housing material:
Stainless Steel

Seal
PTFE

Maximum operating pressure:*
40 bar

Operating temperature:
-20°C – 200°C
