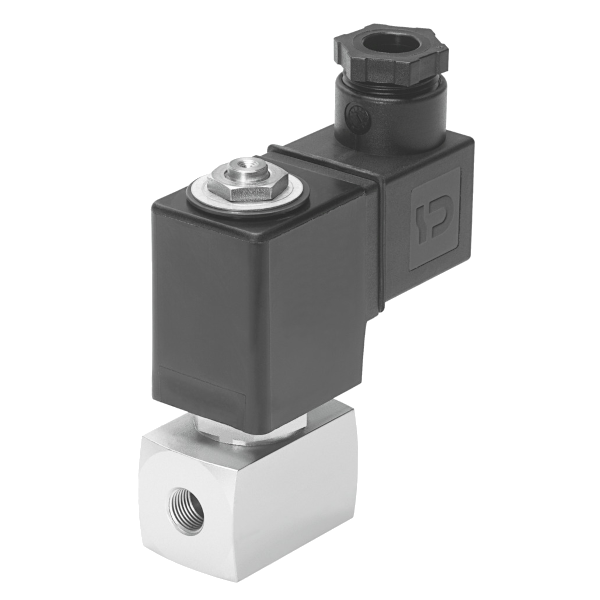

VZWD

Direct-acting Solenoid Valve

Excellent for high-pressure and dosing applications with low flow rates: The directly controlled solenoid valve VZWD works without differential pressure up to 90 bar, even in closed media circuits. It is therefore optimal for high-pressure and metering applications.

★ Festo Core Range

Description

Category:
2/2-way Media valves (solenoid)

Type:
1/8” – ¼”

Connection:
NPT thread
G thread

Housing material:
Stainless Steel, Brass

Seal
FKM

Maximum operating pressure:*
90 bar

Operating temperature:
-10°C – 80°C

Coil voltages:
24VDC, 120VAC, 230VAC

Notes:
Does not require differential media pressure for operation

*Maximum operating pressure is dependent on valve size
