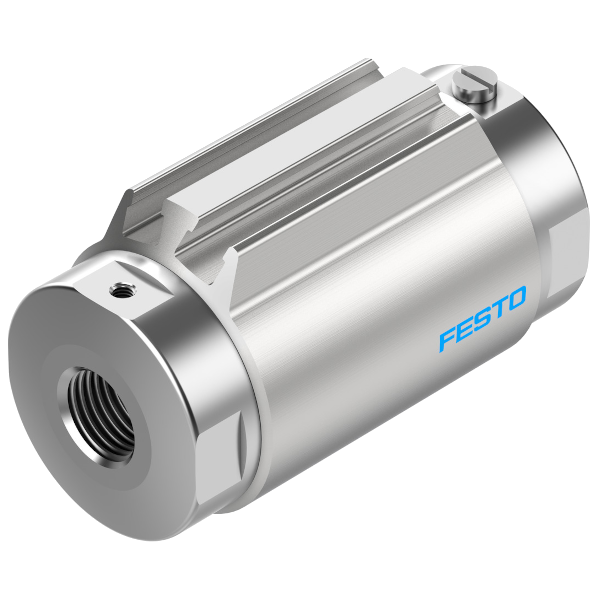

VZQA-NC

Pinch valve

Normally closed or normally open? The choice is yours. With the pinch valve VZQA, you can control media flows such as granulate, fluids containing solids and highly viscous or abrasive media even better. The compact valve is quick to install, easy to clean and offers modular configuration.

★ Festo Core Range

Description

Category:
2/2-way Media valves (pneumatic)

Type:
¼”, ½”, 1”

Connection:
NPT thread
G thread
Clamp (ASME BPE)
Clamp (DIN 32676)

Housing material:
Stainless Steel, Aluminium

Seal
NBR, EPDM, VMQ

Maximum operating pressure:*
6 bar

Operating temperature:
-5°C – 60°C (NBR)
-5°C – 100°C (EPDM)
-5° – 150°C (VMQ)
