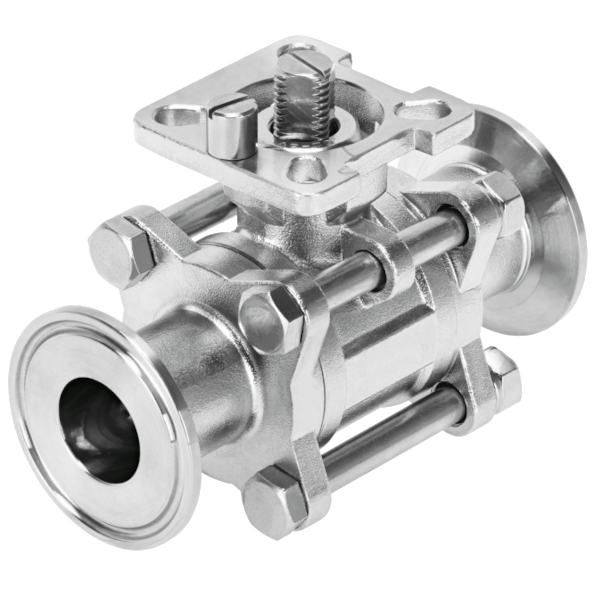

VZBD

Ball Valve

The 2-way stainless-steel ball valve is the ideal partner for the pharmaceutical and cosmetics industry. Its seals are compliant with FDA standards and it has electropolished surfaces, long welded ends, or clamping sleeves.

Description

Category:
Ball Valve

Type:
½” – 4” (2-way)

Connection:
ASME BPE Clamp
ASME BPR Long Weld

Housing material:
316L Stainless Steel (electro polished)

Seal
PTFE (cavity filler)

Maximum operating pressure:
1000 psi

Operating temperature:
-20°C – 200°C

Direct Mount:
Yes

Lockable Handle:
As accessory

Certification:
CRN, 3A
